Create a Custom Fireplace Chimney

Combinations of custom shapes allow you to create a wide variety of chimney designs.

Create each element as a custom shape and set the elevation.

Shape 1: Chimney Stack Walls
             Set the Lip Height of the custom shape for the chimney crown cap or flaunching

Shape 2:
Accent Bands

Shape 3 and 4:
Chimney Caps and Pipes

Chimney 3         Chimney 2

Chimney 1         Chimney 4

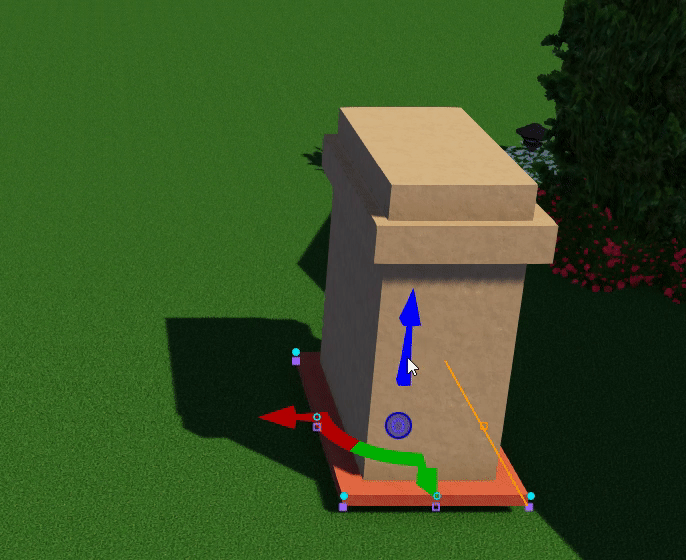

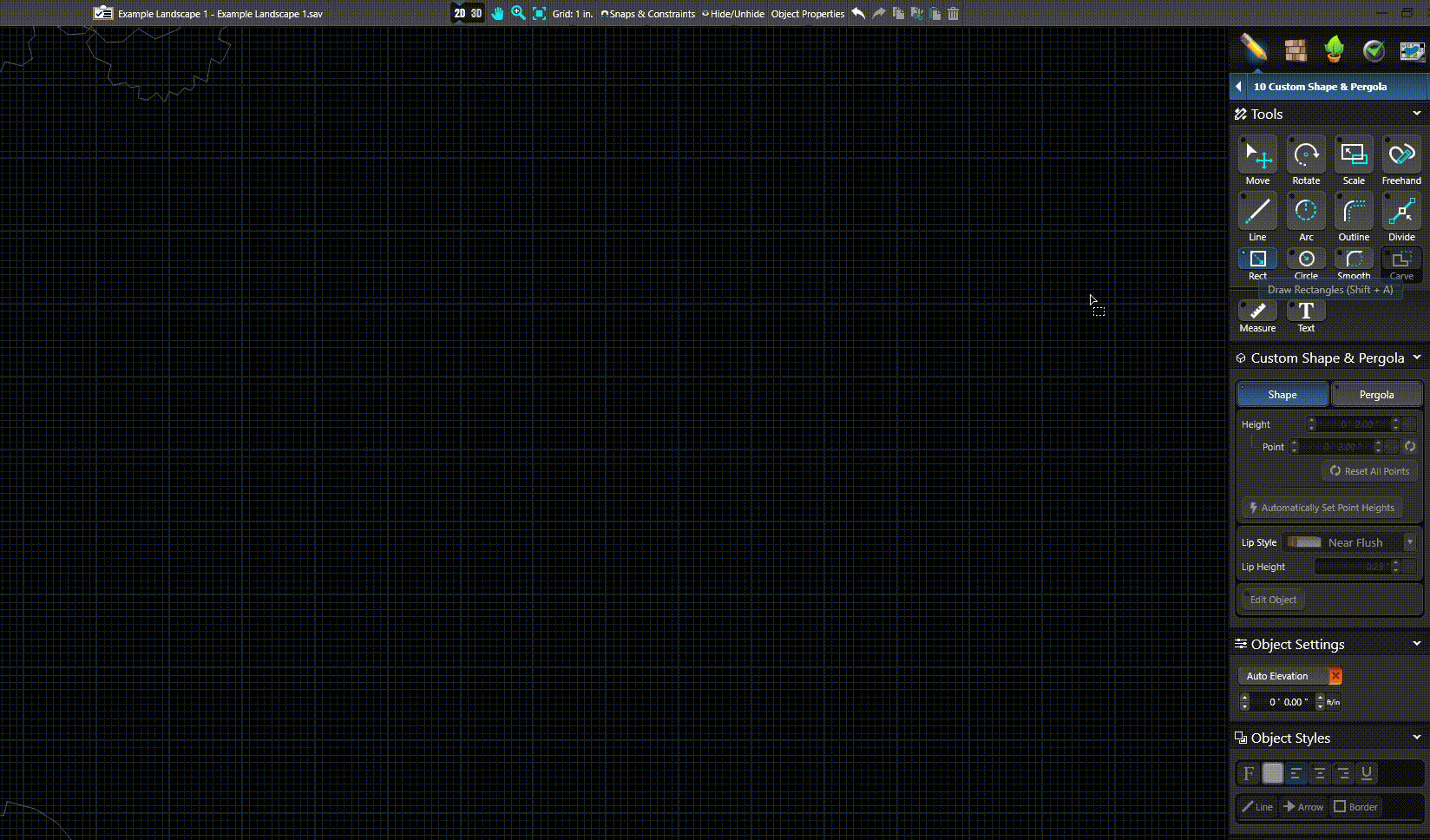

Custom Shapes can be modified in both 2D and 3D.


Customize the Appearance

Head to the Materials Stage to apply a unique material to each element.

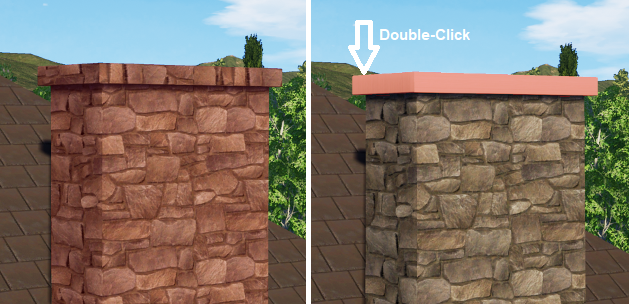

To change the material on the chimney crown cap, select it by double left clicking directly on it. The selected surface will highlight in red.

Chimney Materials

Design a Complete Outdoor Fireplace

A custom fireplace allows for complete size, style and material customization. The structure of a custom fireplace is frequently built in custom shapes and then using the carve tool to create the firebox.

You can also add custom shapes to create decorative borders and accents.

Once the structure is in place, add logs, fire, a mantle or surround from the library.

The outside of the fireplace can then be finished with stucco, stone or brick veneer, decorative concrete, or tile in the Materials Stage.

For more tips, watch our Outdoor Fireplace Video.
