How to Create an Acrylic Pool Window

Use a spillover to create a pool window

To add a pool window, draw you pool in the Pools Stage.
Pool Window 4

Add a Spillover

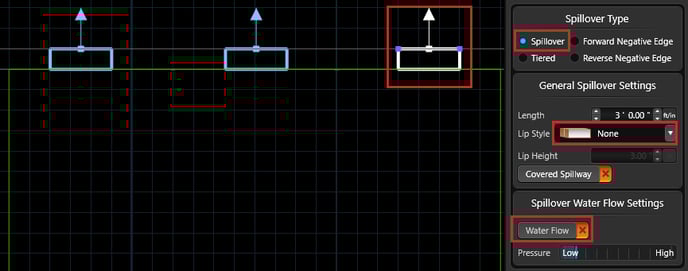

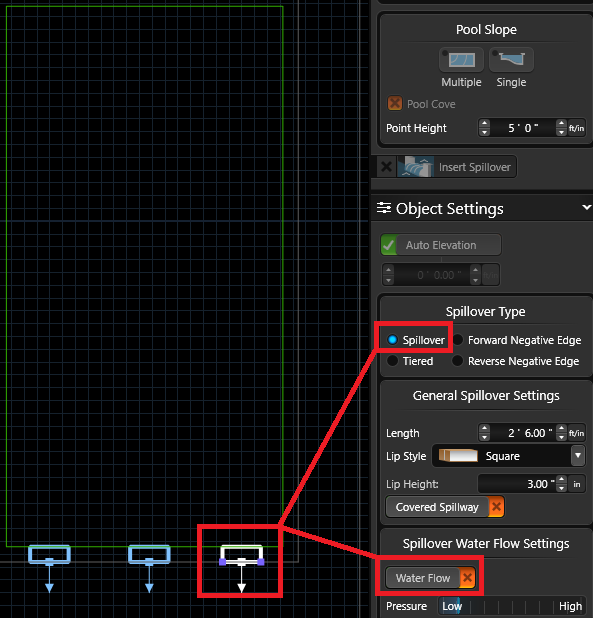

With the Pool selected in 2D, add a Spillover for each window. Set the Lip Style to None and turn OFF Water Flow:
Pool Window
Pool Spillover Window

Apply Glass

Next, go to the Materials Stage. Double-click the spillover and apply glass from the Library:

Pool Window 2Go inside of the pool to apply glass to the inside of the spillover as well:

Pool Window 3


Add Custom Shape Beam

Finally, add a custom shape that is the same width as the pool beam for the bottom.

Use the Outline Tool to trace the outside pool line and then press the large orange endpoint to set the width to 1 ft.

Outline


Head to 3D

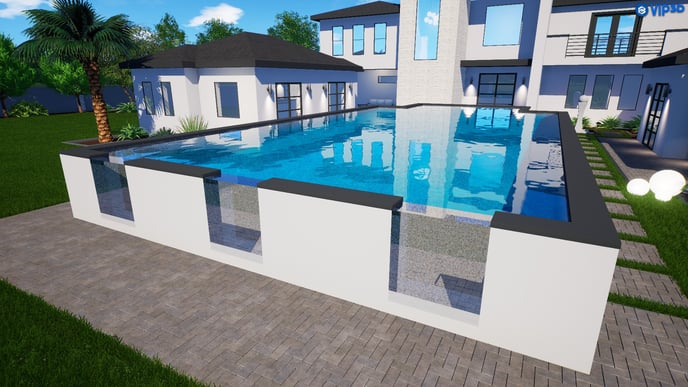

Check out your finished work in 3D:

Pool Window 4
