The Presentation mode allows you to create a real time 3D presentation of your design. Presentation Mode is a fully interactive tour of every detail of your design. You may also choose ambient sounds to play in the background.
Getting to Presentation Mode: In order to explore your project in Presentation mode, go to the Finalize Phase and the Create Presentation Stage. Click the “Presentation” button in the panel.
You can also enter the Presentation Mode by selecting View Presentation Mode under the Application Menu or pressing F5.

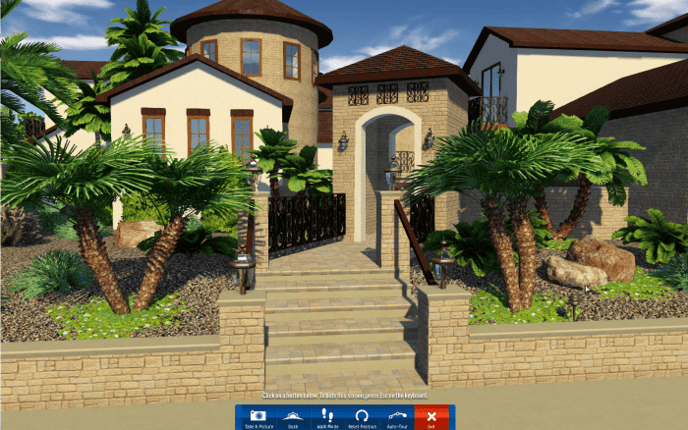

Presentation Control System
Navigation in the Presentation Mode is simple. Moving the mouse around will change the direction you are looking. Pressing and holding the left mouse button will move you forward in the direction you are looking. Pressing and holding the right mouse button will move you backwards from the direction you are looking.
During Presentation Mode you can use the following commands:
Saved Location: To move to a specific location saved in Photo Mode, Press the location number. For example: To move to Location 02, Press 2.

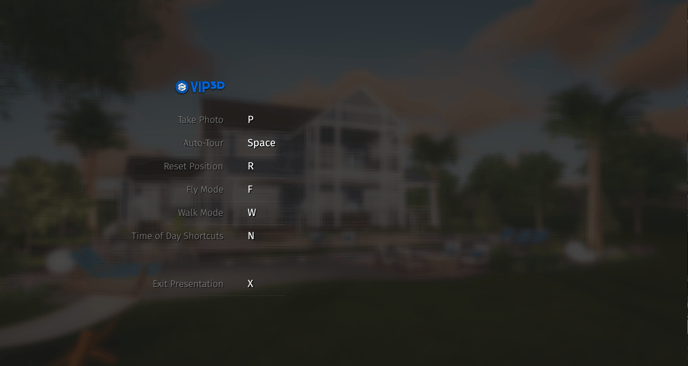

ESC: This will bring up the menu at the bottom of the screen, where all of these commands can also be found.
X: Exit Presentation Mode and return to the program.
R: Reset the view to where the Presentation mode began.
A: Automated tour. The view will automatically rotate around your current location in the project.
Space Bar: Same as A, starts the Automated Tour.
P: Take a picture/screenshot of your presentation. This command will take a picture of your current view in the presentation mode. The screenshot will be saved in the screenshots folder.
F: While in Walk mode, enter Fly mode. Fly mode allows you to “fly” anywhere in the 3D view.
W: While in Fly mode, enter Walk mode. Walk mode plants your feet firmly back on the ground so you can walk around.
N: Go from day to dusk to night.
Enter Key: Play/Pause item and landscaping animations. This command will turn item animations on and off while in Presentation Mode.
